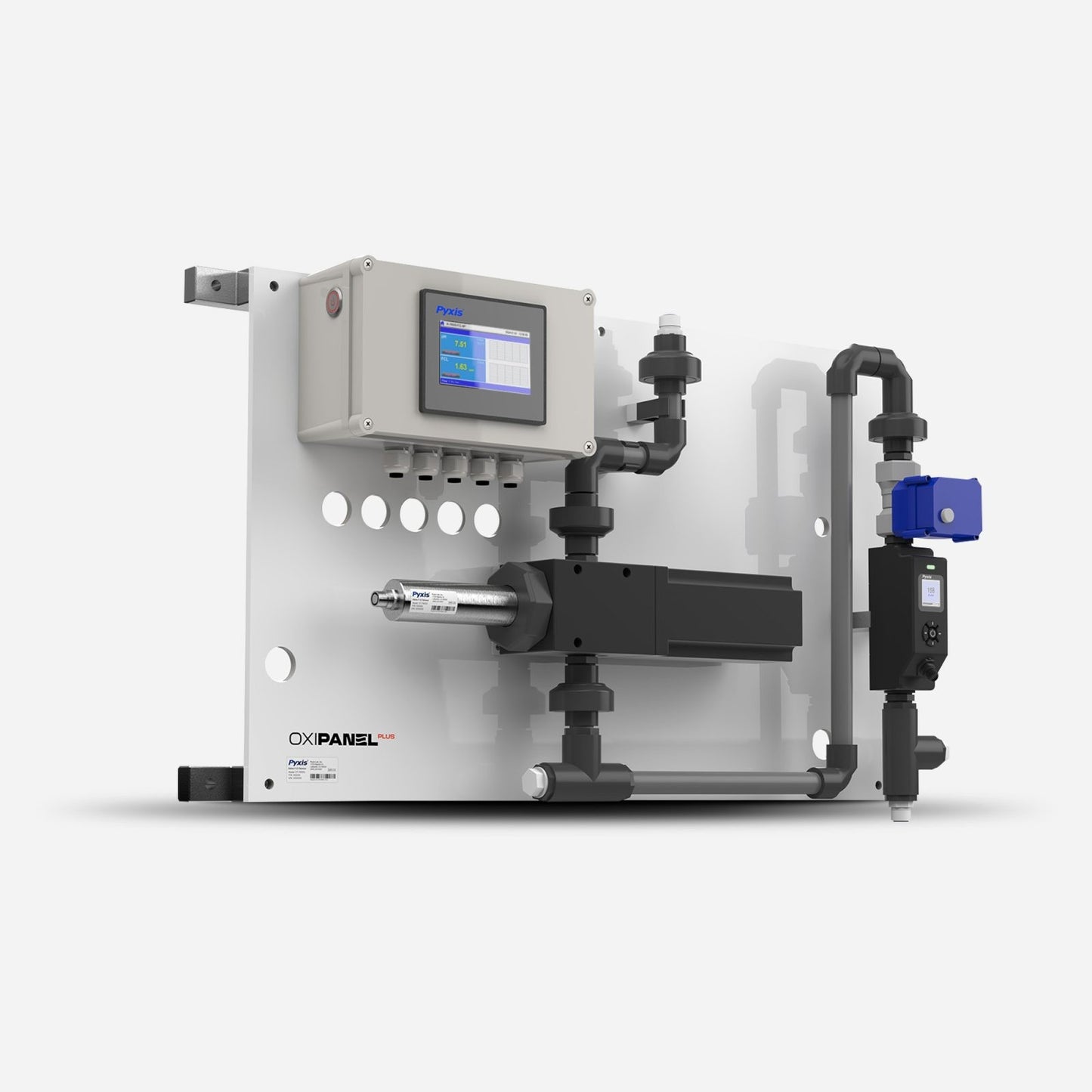

Pyxis Oxipanel Plus - Free Chlorine

The OXIPANEL-PLUS IK-765-BP series are pre-mounted inline multi-parameter analyzers with integrated ultrasonic flow control. They are specifically designed as a ‘Turn-Key’ monitoring solution for challenging water applications. These include cooling water, food, industrial process water, raw water and treated waste water. This product offers highly accurate, repeatable, and real-time measurements of multiple oxidizer species. As well as pH, ORP and temperature utilizing proprietary Pyxis Lab smart sensor technology. Couple this with a Pyxis UC-80 color touch screen display and data logging terminal. As well as the Pyxis FS-100 ultrasonic flowmeter with regulating valve. The OXIPANEL-PLUS also incorporates the uniquely designed FR-300-PLUS automated mechanical brush flow assembly to maintain optimum sensor electrode cleanliness in the most challenging water where conventional membrane amperometric or wet chemistry analyzers would fail.

The OXIPANEL-PLUS IK-765-BP series are offered in four sensor formats depending on the desired oxidant being measured. The panel is designed with the propriety Pyxis ST-765SS Series smart sensor platform based on application needs. The ST-765SS Series sensors measure Free Chlorine (FCL), Total Chlorine (TCL), Bromine (Br) or Chlorine Dioxide (CLO). In addition to pH, ORP and temperature of the sample water. This Pyxis sensor design is membrane-free and based on unique principles incorporating Pyxis’ advanced technology of bare-gold electrochemical detection. All versions of the ST-765SS-Series sensor measure the oxidant level and pH simultaneously. Performing temperature and pH compensation for the measurement of oxidant based on conditions present in the application of use.
