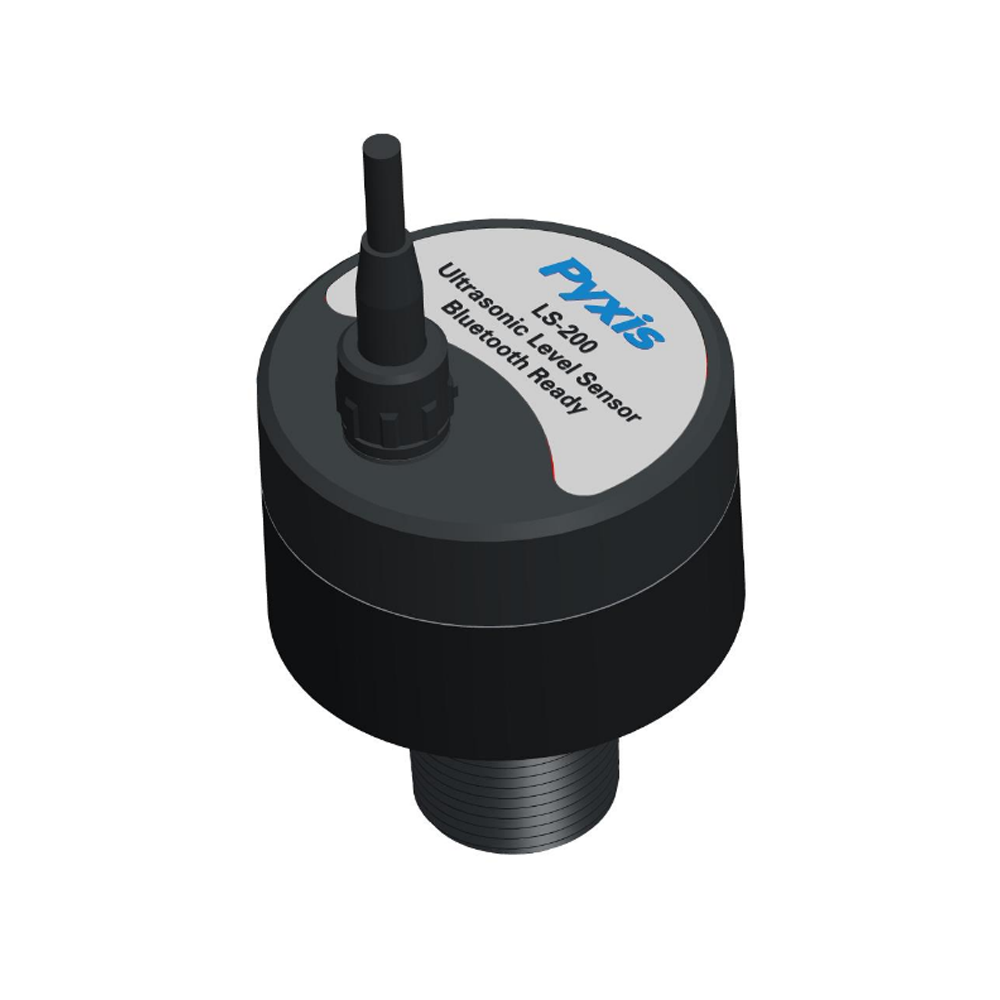

Pyxis LS-200 Level Sensor

LS-200 Bluetooth Ultrasonic Level Sensor

The Pyxis LS-200 is a general purpose and innovative ultrasonic liquid level sensor that replaces float, conductance and pressure sensors that fail due to contact with dirty, sticky and scaling liquids in small, medium and large capacity tanks. These liquid level sensors can be used in either open or enclosed tanks. The sensor provides continuous level measurement up to 86 inches (2.2m) with a 4-20 mA signal output, RS485 and Bluetooth digital output, and can be configured via Pyxis free uPyxis® APP for both smartphone or desktop. The LS-200 sensor can be powered by a 24VDC external power source via the 10’ output and power supply waterproof cable provided. This noncontact liquid level sensor is well suited for corrosive liquids chemical or process tank applications.

UltraSonic Level Sensing From Pyxis

LS-200  = 0-2 meters (4~78 inches)

Accuracy: 0.15% of reading or 0.5 mm

LS200 = 24V Power & 4-20mA/RS485 Output

Easy to Configure using our uPyxis mobile app! (Pyxis P/N 54002)

Installation: 1” MNPT Thread

PVDF transducer and 6P polycarbonate enclosure for corrosive liquids

Automatic temperature compensation for accurate measurement despite condensation

Bluetooth® Version 5.0 for measurement result output and configuration (32+ ft Line of Site)
