Pulsafeeder
SKU:PUL-LBC2SA-PTC1-XXX
Manufacturer PN:LBC2SA-PTC1-XXX

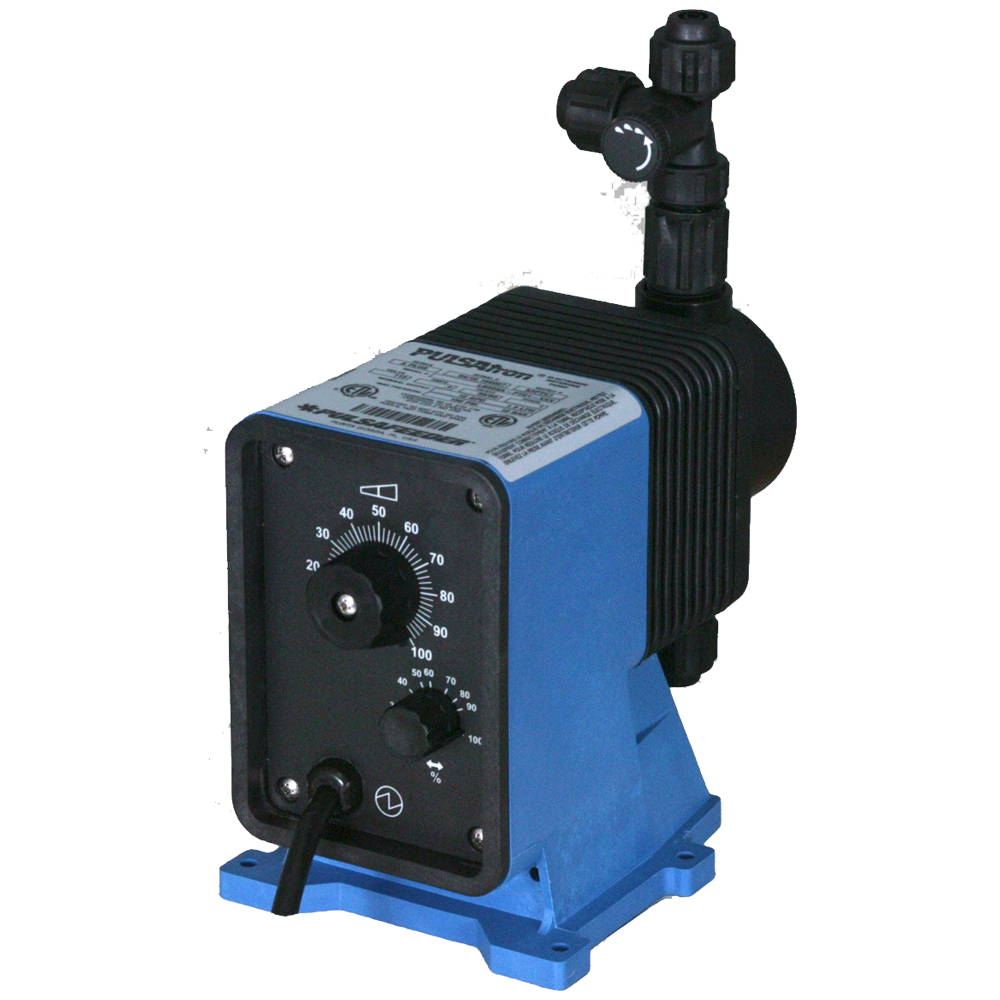

Pulsatron Series A+ Metering Pump, 115 VAC
Pulsatron Series A+ Metering Pump, 115 VAC
In stock
Please log in to view pricing.
Shipping calculated at checkout.
Couldn't load pickup availability
The Pulsatron Series A+ metering pump from Pulsafeeder, supplied for 115 VAC, 60 Hz. Choose the model (flow rate and pressure), control and liquid end for your application. The part number, price and stock update for each combination.
Models
| Model | Flow (GPD) | Flow (GPH) | Flow (LPH) | Max pressure (PSI / bar) | Stroke rate (SPM) |
|---|---|---|---|---|---|
| C2 | 6 | 0.25 | 0.9 | 250 / 17 | 125 |
| 02 | 6 | 0.25 | 0.9 | 150 / 10 | 125 |
| C3 | 10 | 0.42 | 1.6 | 250 / 17 | 125 |
| S2 | 12 | 0.50 | 1.9 | 250 / 17 | 250 |
| 03 | 12 | 0.50 | 1.9 | 150 / 10 | 125 |
| 04 | 24 | 1.00 | 3.8 | 100 / 7 | 125 |
| 64 | 30 | 1.25 | 4.7 | 100 / 7 | 125 |
| S3 | 33 | 1.38 | 5.2 | 150 / 10 | 250 |
| C4 | 48 | 2.00 | 7.6 | 50 / 3.3 | 125 |
| S4 | 58 | 2.42 | 9.1 | 100 / 7 | 250 |
Control options
- Manual: Manual control, analog adjustment. 100:1 turndown (10:1 stroke length, 10:1 frequency).
- External pace: External pace with auto/manual switch. 100:1 turndown (10:1 stroke length, 10:1 frequency).
- Stop function: Stop function option. 100:1 turndown (10:1 stroke length, 10:1 frequency).
- Manual, extended turndown: Manual control, analog adjustment. 1000:1 turndown (10:1 stroke length, 100:1 frequency).
Liquid end
Materials are listed as head and valves, seats and O-rings, check balls.
- PHC: glass-filled polypropylene head and valves, CSPE (Hypalon) seats and O-rings, ceramic check balls. Limited to 150 PSI.
- PTC: glass-filled polypropylene head and valves, PTFE (TFE) seats and O-rings, ceramic check balls.
- VTC: PVC head and valves, PTFE (TFE) seats and O-rings, ceramic check balls. Limited to 150 PSI.
- WTC: PVC head and valves, PTFE (TFE) seats and O-rings, ceramic check balls. For models above 150 PSI (S2, C2, C3).
- KTC: PVDF head and valves, PTFE (TFE) seats and O-rings, ceramic check balls.
- VVC: PVC head and valves, Viton seats and O-rings, ceramic check balls. Limited to 150 PSI. Not available with J valve.
- VHC: PVC head and valves, CSPE (Hypalon) seats and O-rings, ceramic check balls. Limited to 150 PSI. Not available with J valve.
Electrical and connection
- Power: 115 VAC, 60 Hz
- Tubing connection: Tubing .25 in ID x .38 in OD
Good to know
- Pumps rated above 150 PSI are derated to 150 PSI maximum with the PHC, VTC, VVC and VHC liquid ends. The pressure rating shown for each selection already reflects this.
- Maximum viscosity is 1,000 cps.
- Part numbers follow the pattern LB + model + control + electrical, then liquid end + connection, then option (for example PUL-LBS4SA-PTC1-XXX). The PUL- prefix is ours; the manufacturer part number is shown in the Alternate part numbers field.
