MicroVision Boiler

Wiring Conduit Prewired

Piping None 1/2" Motorized Ball Valve & 1/2" Flow Throttling Valve (250 PSI) 1/2" Solenoid Valve & 1" Orifice Union (100 PSI) 1/2" Motorized Ball Valve & 1" Orifice Union (100 PSI)

Probe/Wiring None 1" Long Probe w/ RTD (250 PSI/392 F)

In stock

Please log in to view pricing.

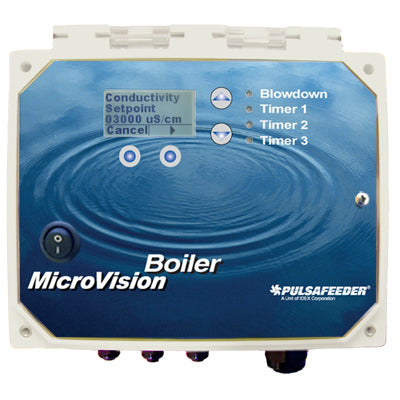

The MicroVision Boiler Controller is configured specifically for boiler water control featuring a reliable temperature compensated conductivity probe, 5 output relays with selectable timers, scalable 4-20mA output to report conductivity, hall-effect and pulse water meter inputs and digital drum levels or a flow switch.

Simple Programming - Factory preset to operate in timed sample mode right out of the box
Easy installation and easy to use
Reliable Conductivity Probe - Temperature compensated for accurate readings
Selectable Sampling Modes - Continuous / Timed Sample / Sample & Hold, 5 output relays
Selectable timers
5 digital inputs
4-20mA output
Heavy duty enclosure

General Specifications

Power Input

90 VAC - 50/60HZ - 5A, 250 VAC - 50/60 HZ - 5A

Product Options:

Prewired
High Pressure Flow Assembly
