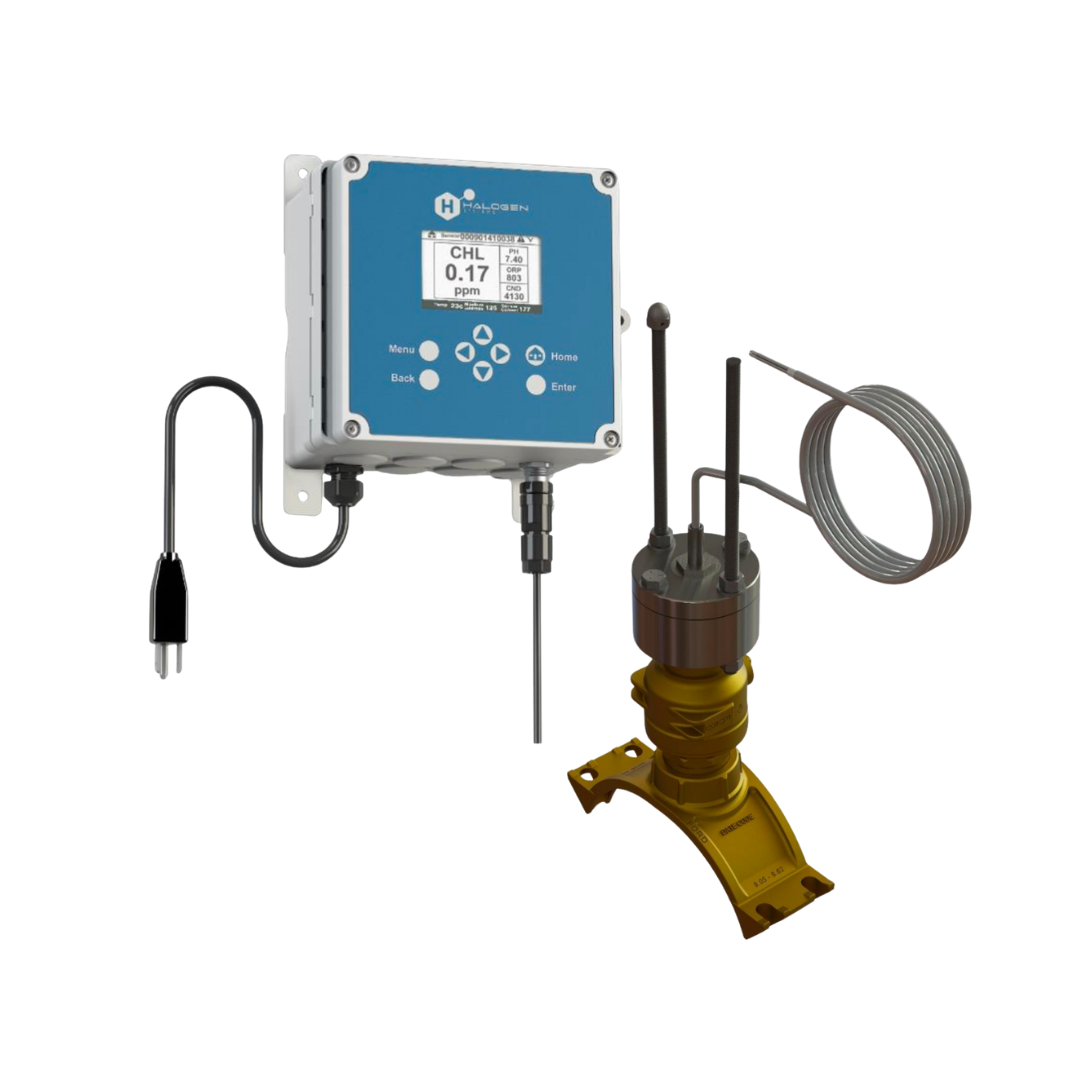

Halogen Systems Chlorine Controller

The MP5-A multiparameter sensor from Halogen Systems provides NSF61-certified chlorine monitoring with wet tap configuration for direct insertion into potable water distribution lines. This approach eliminates sampling delays and delivers continuous, real-time chlorine concentration data at the point of use.

The accompanying control unit operates across 85–240VAC input ranges and features four 4–20mA analog outputs, enabling direct integration with proportional dosing systems, SCADA networks, and remote monitoring infrastructure. The electrode-based measurement technology requires no reagents, membranes, or electrolyte replenishment, reducing operational overhead while maintaining measurement integrity in active water treatment environments.

Probe Specifications:

• Measurement method - electrode pH/Temp compensated chlorine (no reagent, membrane or electrolyte)
• Chlorine Range - 0-20 ppm
• Accuracy - +/-5%
• Operating Temperature (33-131 F)
