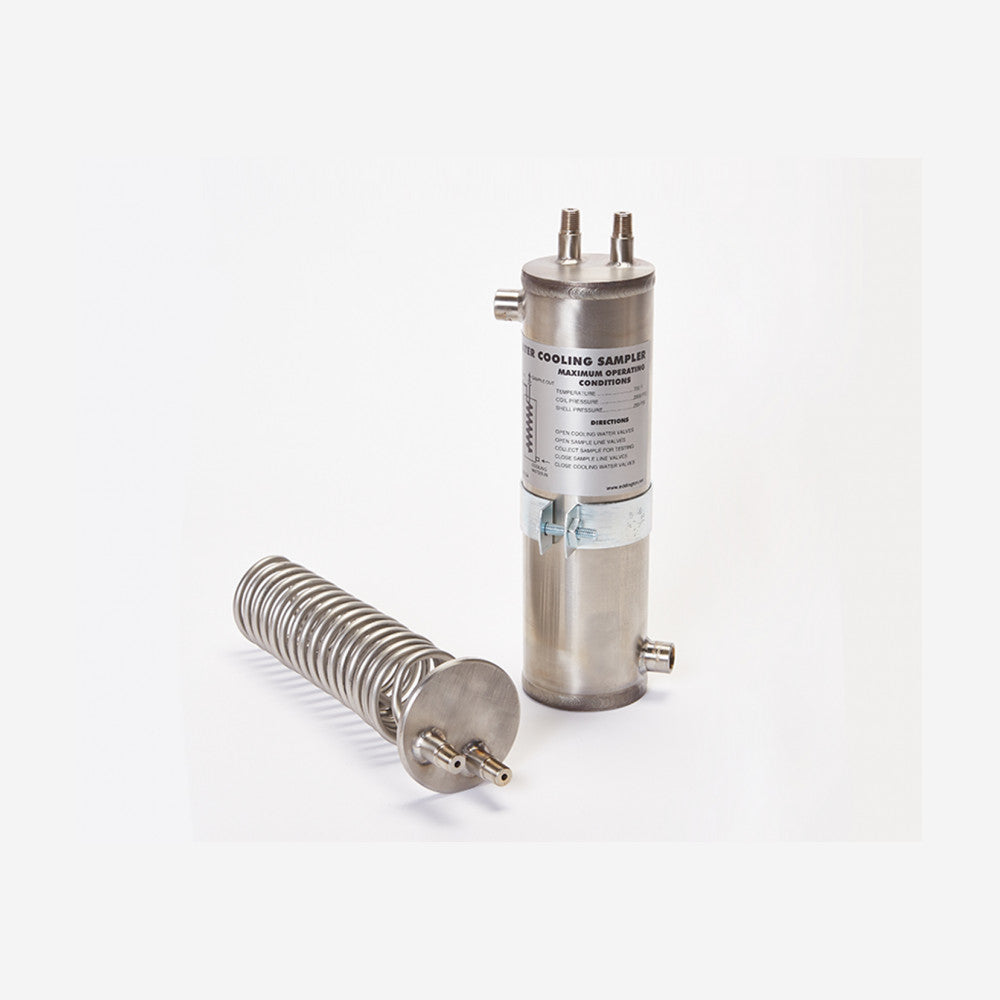

Eddington Industries Sample Coolers are a safe and convenient method of withdrawing water from boilers, steam lines, or tanks containing chemicals and for cooling the withdrawn liquid for subsequent chemical analysis. This rugged counter flow heat exchanger is easy to install. The inner coil is manufactured from Type 316 Stainless Steel and is of one piece construction. Eddington Industries can also supply sample coolers with removable coils upon request.
Shell: Type 304 Stainless Steel
End Caps: Type 304 Stainless Steel
Sample IN/OUT Adapters: ¼” MNPT-Type 316 S/S
*Cooling Water Adapters: 3/8” or ½” FNPT-Type 304 SS
Coil: Continuous Coil of 316 S/S
Max Coil Pressure: 2500 psi
Max Shell Pressure: 250 psi Overall Length: 13 5/8”
Diameter of Shell 3 ½” OD
